TC-SW6

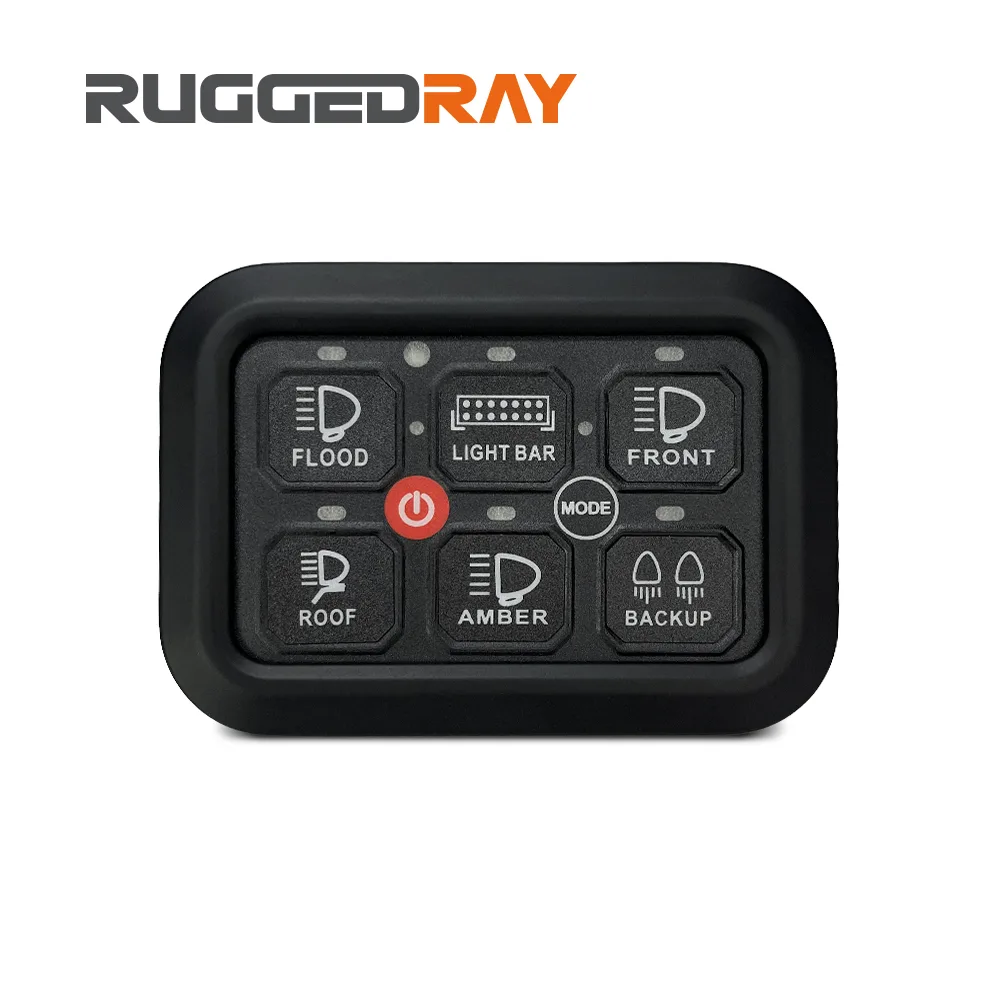

6-Way Switch Panel (Electronic)
Six rated circuits in a compact footprint — the common choice when dash space is tight but the loads are still real.
- Circuits
- 6
- Voltage
- 12–24V DC
- Total current
- ≤60A total
- Switching
- Electronic
- Warranty
- 5 years
- Certified
- CE · FCC · RoHS 2.0 · REACH
Compact 6-gang panel with RGB backlight
Six rated circuits
2×30A, 2×20A, 2×10A — a light bar, a compressor, a fridge and camp lighting, each properly protected.
Fits where space is tight

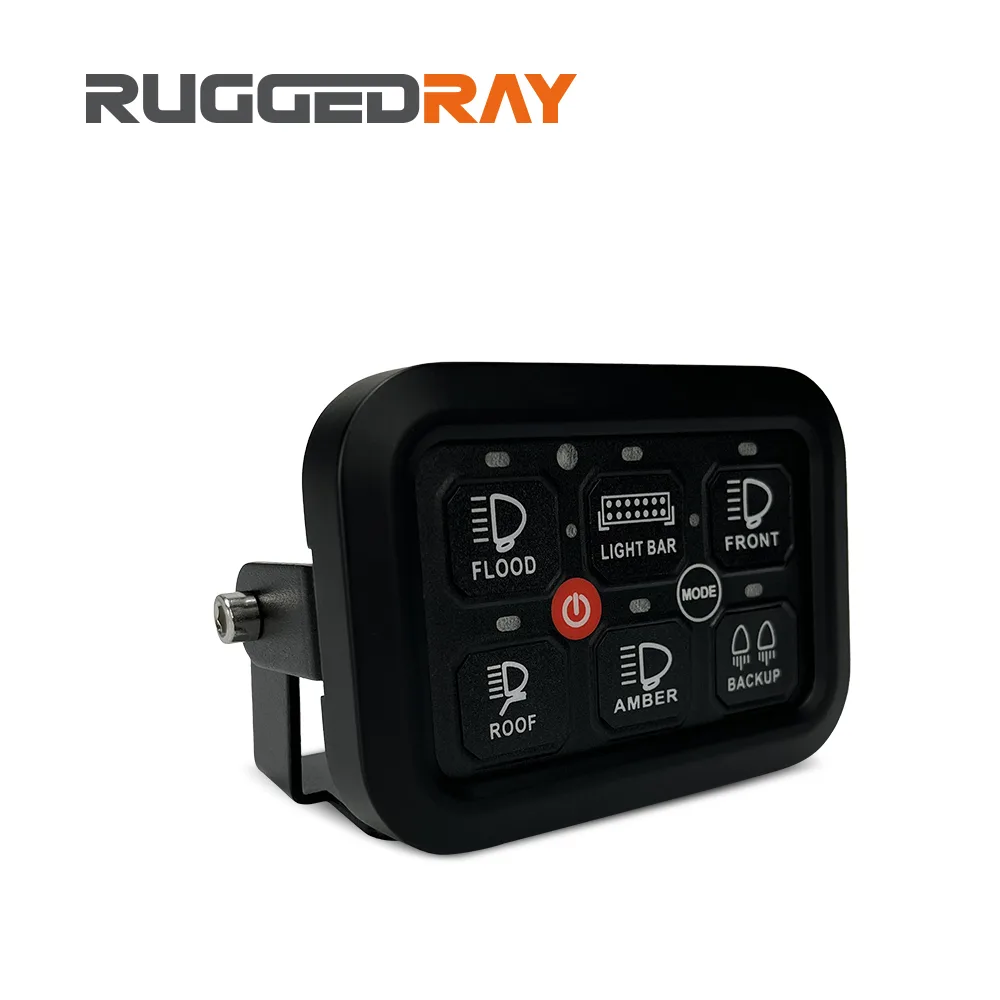

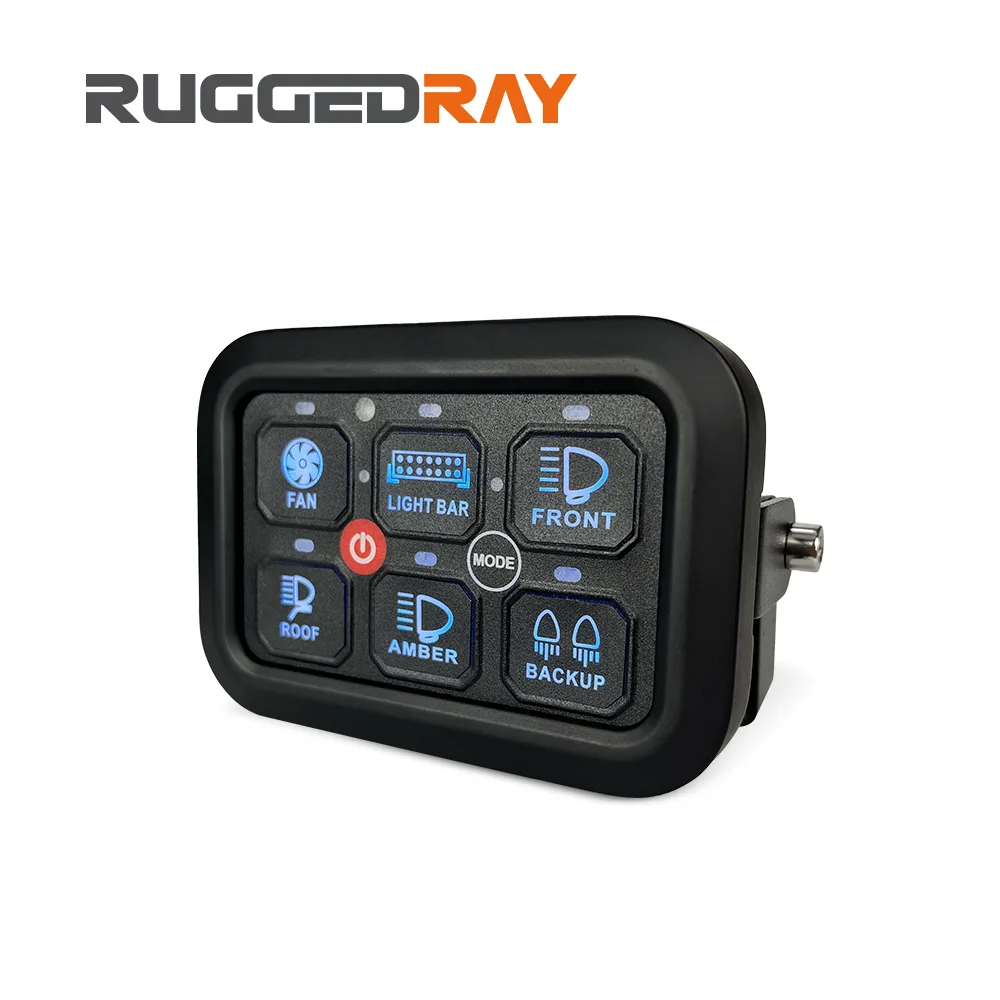

The compact head goes on a pillar or a console without stealing a vent or a cup holder.

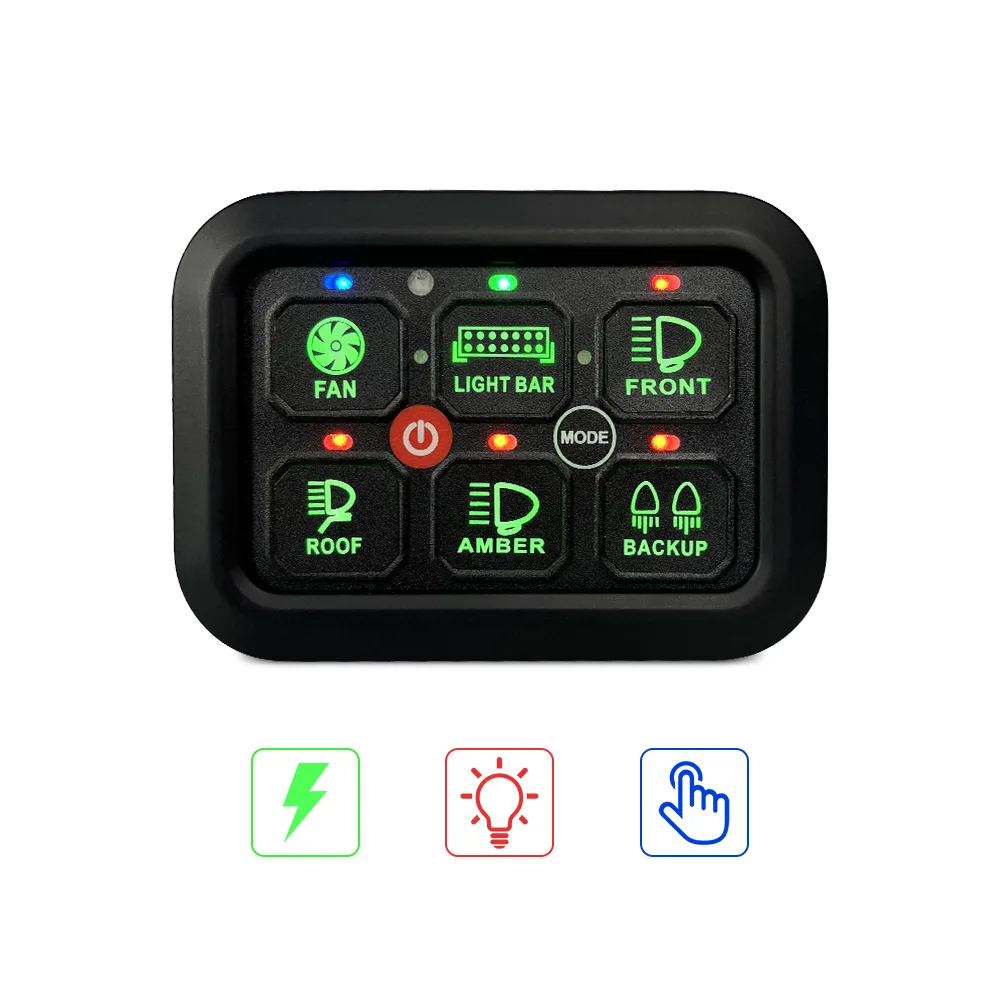

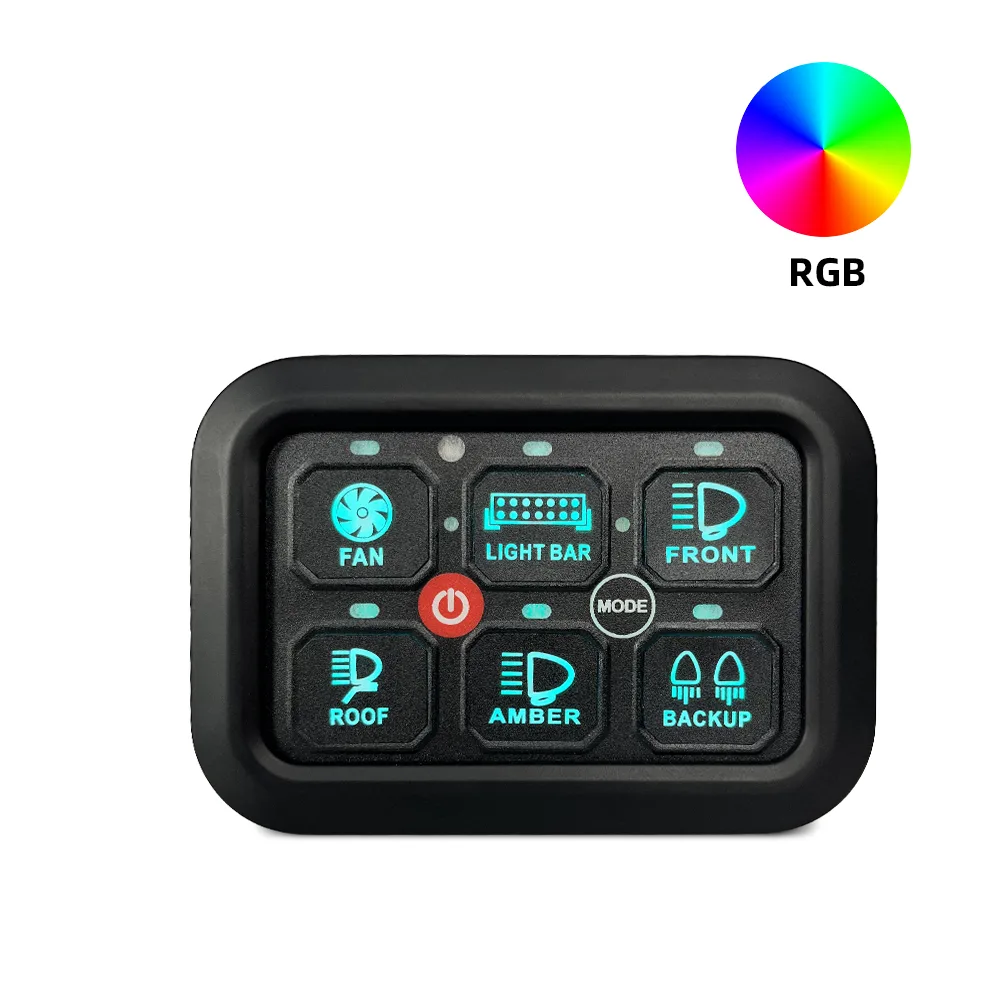

RGB backlight, 60 icons
Set the colour from the MODE button and label the keys to match the build.
Bluetooth optional
Add the module if you want app control; leave it off if you would rather keep the system simple.
What it does
- Six independently rated circuits: 2×30A, 2×20A, 2×10A
- Solid-state electronic switching
- RGB backlight set from the MODE button
- 60 OEM icon options
- Bluetooth module optional
Where it goes

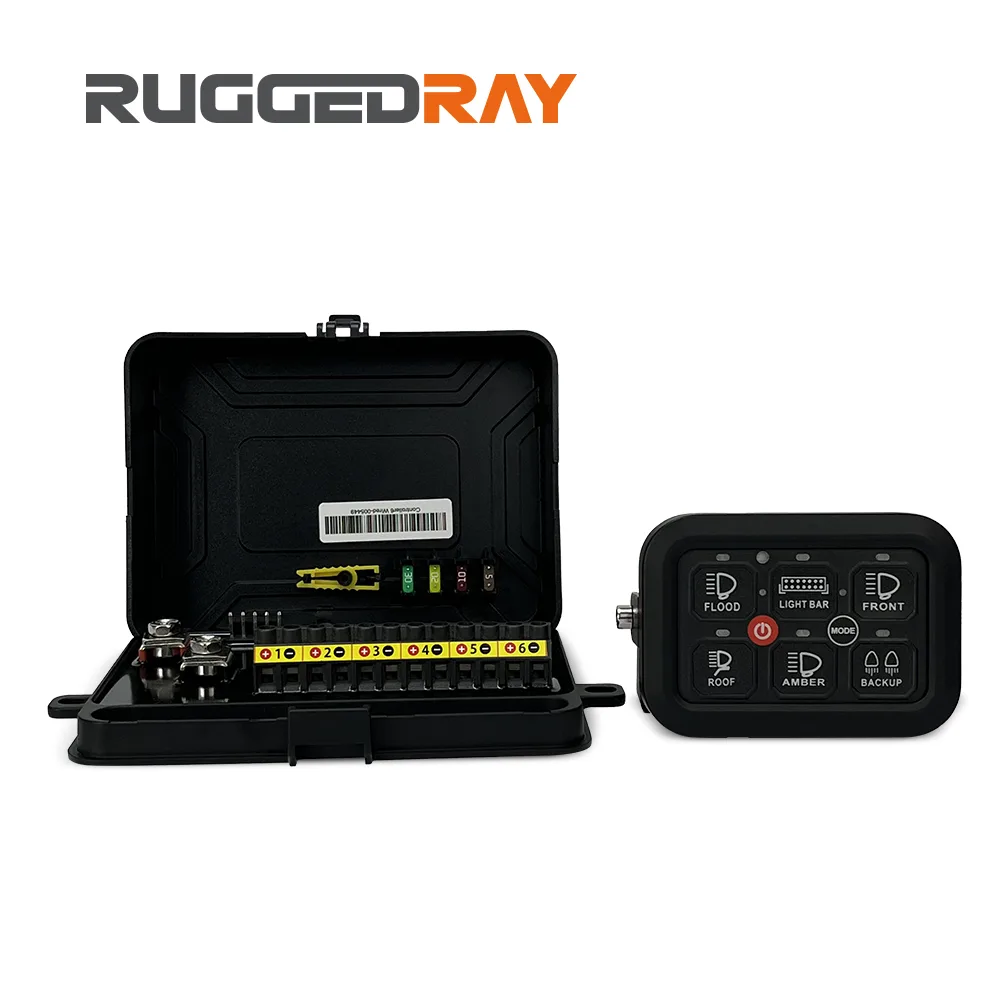

Built for overlanding rigs, 4WD touring builds, utes, trucks and recovery vehicles running 12–24V DC systems. The control box mounts in the engine bay; the switch head sits within reach on the dash or console.
Typical loads on a 6-circuit build: driving lights, a light bar, work lights, an air compressor, a dual-battery fridge, rock lights and camp lighting — each on its own protected channel.
Rated for -40°C to 105°C, so it holds up from a Scandinavian winter to an Australian summer.
Specifications
| Model | TC-SW6 |
|---|---|
| Type | Push-button (Electronic) |
| Circuits | 6 |
| Operating voltage | 12–24V DC |
| Total current | ≤60A total |
| Per-channel rating | 2×30A, 2×20A, 2×10A |
| Power output | 600–1200W |
| Switching technology | Electronic |
| Control | Panel buttons + BLE (optional) |
| Backlight | RGB (MODE button) |
| Bluetooth | Optional |
| Icon options | 60 OEM icons |
| Ingress protection | IP65 |
| Operating temperature | -40°C to 105°C |
| Panel dimensions | To be confirmed — contact us for this figure |
| Net weight | 1.9 kg/set |
| Warranty | 5 years |
| Certifications | CE, FCC, RoHS 2.0, REACH |
Specifications marked to be confirmed are awaiting written confirmation from the production line. We would rather leave a field blank than publish a number we cannot stand behind — ask us and we will chase it for you.
Certification
Tested as part of the RuggedRay 12V smart switch panel family. Certificate numbers and the issuing laboratory are published so a distributor can verify them directly; full copies are supplied with dealer enquiries.
RuggedRay products are designed, manufactured and certified under Guangzhou Trutec Electronics Technology Co., Ltd.
| Mark | Scope | Certificate | Issued by | Issued |
|---|---|---|---|---|
| CE | EMC Directive 2014/30/EU | HTT2024121386E | Shenzhen HTT Technology Co., Ltd | 2024-12-31 |
| FCC | Supplier's Declaration of Conformity | HTT2024121386F | Shenzhen HTT Technology Co., Ltd | 2024-12-31 |
| RoHS 2.0 | Directive 2011/65/EU Annex II, as amended by (EU)2015/863 and (EU)2017/2102 | HTT2024121386R | Shenzhen HTT Technology Co., Ltd | 2024-12-31 |
| REACH | SVHC screening, 240 substances | Report on file | Shenzhen HTT Technology Co., Ltd | 2024-12-31 |
Questions buyers ask
- Will the TC-SW6 run on a 24V truck?
- Yes. The TC-SW6 accepts 12–24V DC, so the same part number covers 12V 4WDs and 24V trucks without a converter.
- Can I run a winch through it?
- Not directly. The highest-rated channel on the TC-SW6 is 2×30A, which suits lighting, compressors, fridges and pumps. A winch needs its own solenoid or contactor fed straight from the battery — the panel can switch that contactor.
- What happens if a circuit overloads?
- Each circuit carries its own fuse in the control box, so an overload opens that one circuit and leaves the rest running. Fuses are standard blade type — carry a couple of spares and you can swap one on the track in under a minute.
- Is it waterproof?
- The TC-SW6 is rated IP65. The control box is built for engine-bay mounting and the switch head mounts inside the cabin.
- Do you supply custom icons and packaging?
- Yes. The TC-SW6 ships with 60 oem icons as standard, and custom icon sets, logo printing and retail packaging are available for dealer and distributor programmes. Talk to us about volumes.
- What is the warranty?
- 5 years from date of shipment, covering the control box, switch head and loom against manufacturing defects.
