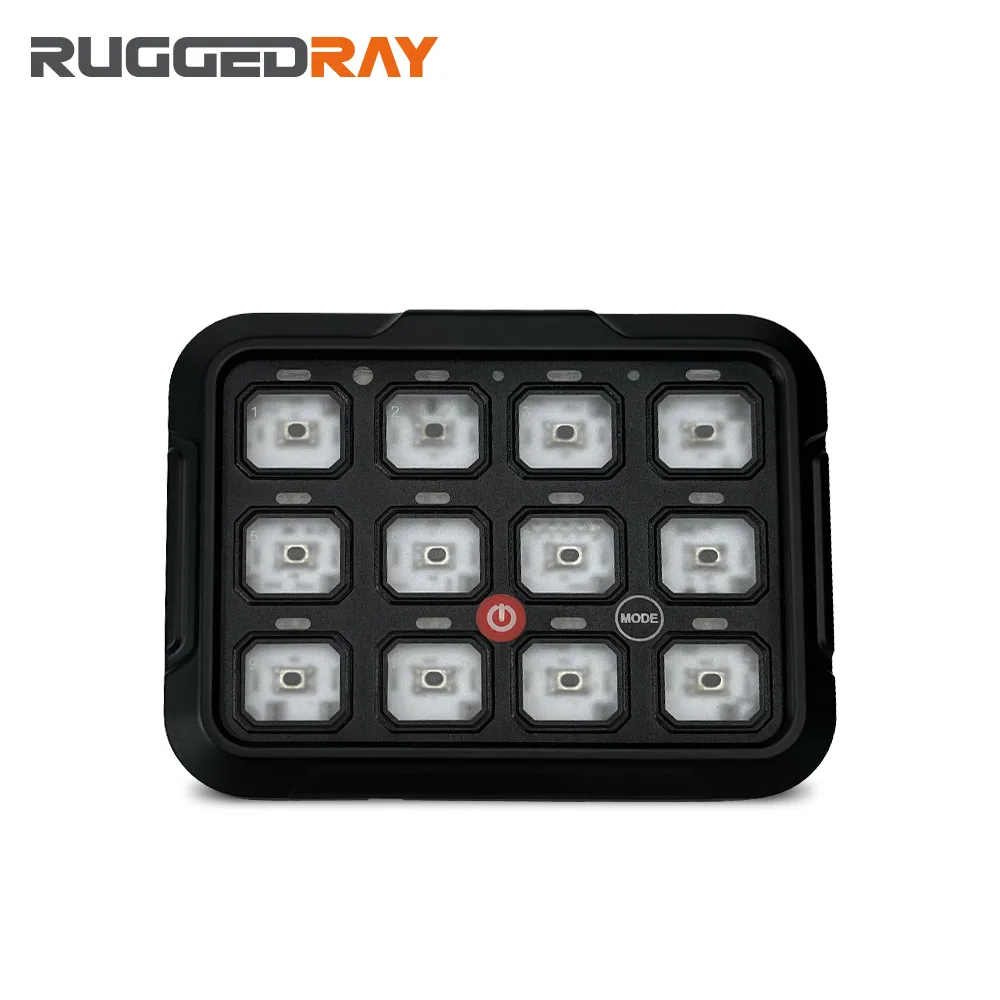

TC-SW12
12-Way Switch Panel
Twelve separately rated circuits and 100A of headroom — enough to run a full touring build without daisy-chaining loads.
- Circuits
- 12
- Voltage
- 12–24V DC
- Total current
- ≤100A total
- Switching
- Electronic
- Warranty
- 5 years
- Certified
- CE · FCC · RoHS 2.0 · REACH

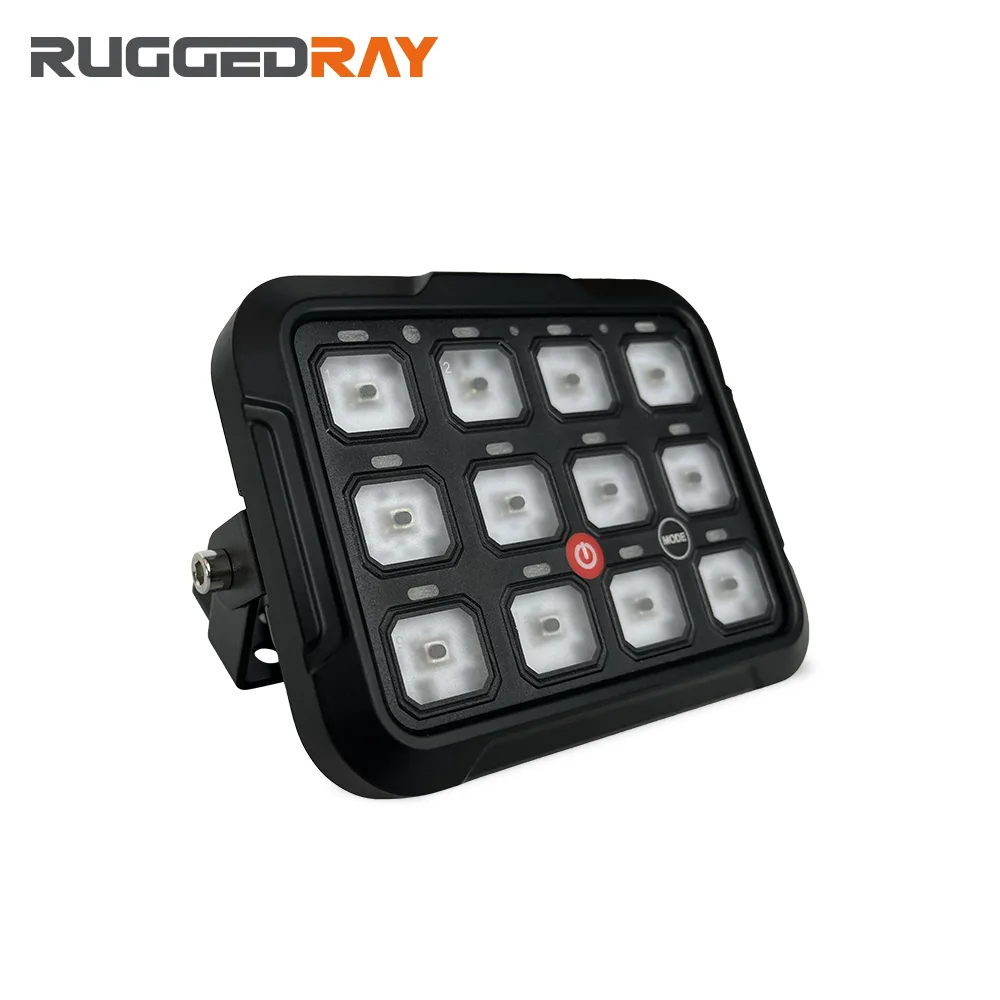

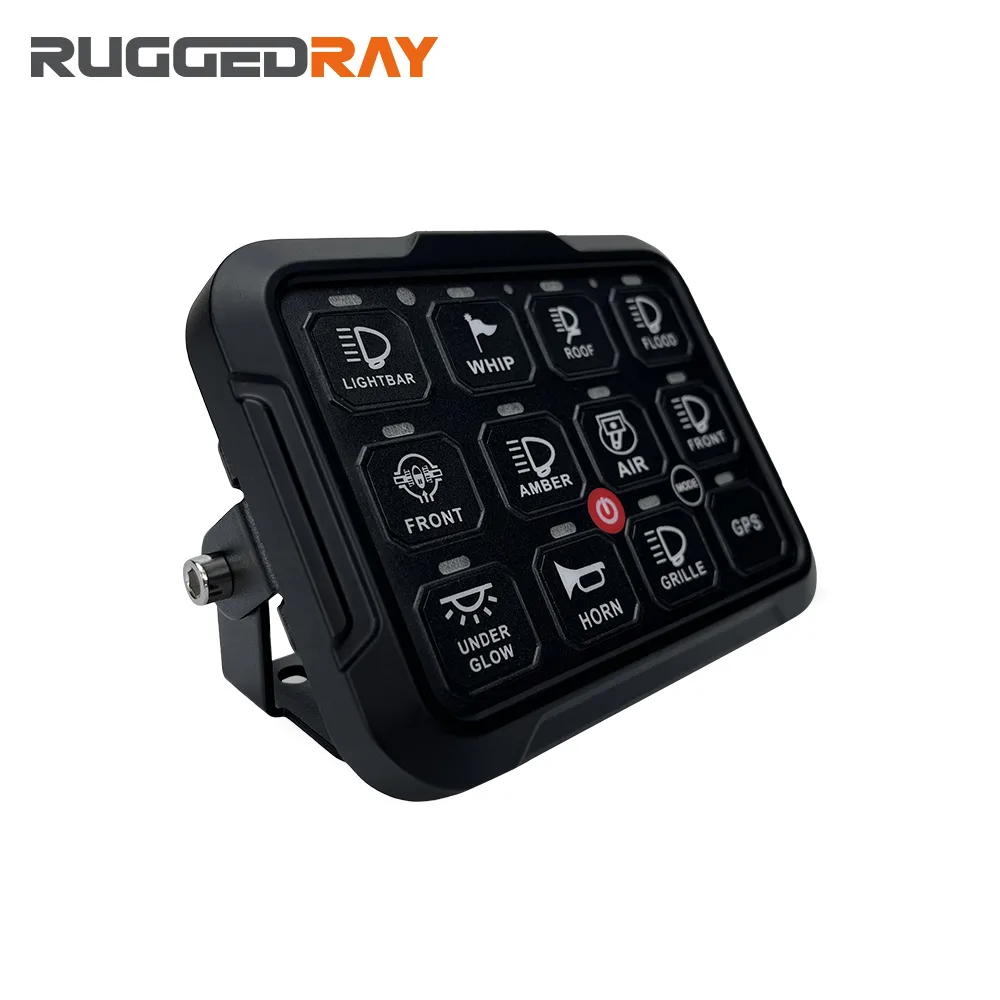

High-capacity 12-gang panel with RGB backlight
Twelve circuits, 100A total
2×30A, 4×20A, 3×10A, 3×5A. Enough headroom for a full touring build without daisy-chaining loads onto one channel.
Isolated positive, common ground
Each circuit is switched on the positive side, so accessories with a chassis earth wire in without a rethink.
RGB backlight
Set the panel colour from the MODE button to match the rest of the dash lighting.
Solid-state switching
Twelve channels and not one relay contact to burn out.
What it does
- Twelve independently rated circuits: 2×30A, 4×20A, 3×10A, 3×5A
- 100A total capacity for heavily built rigs
- Isolated positive / common ground wiring
- RGB backlight set from the MODE button

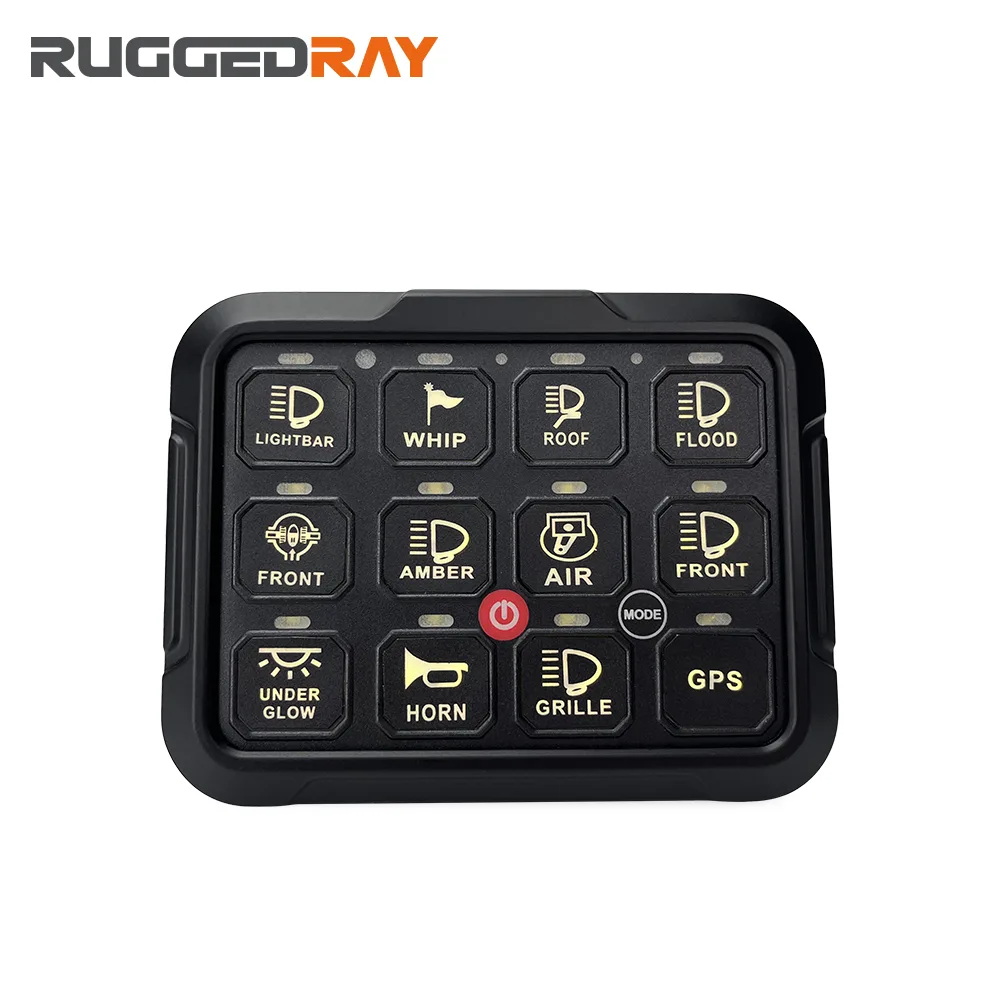

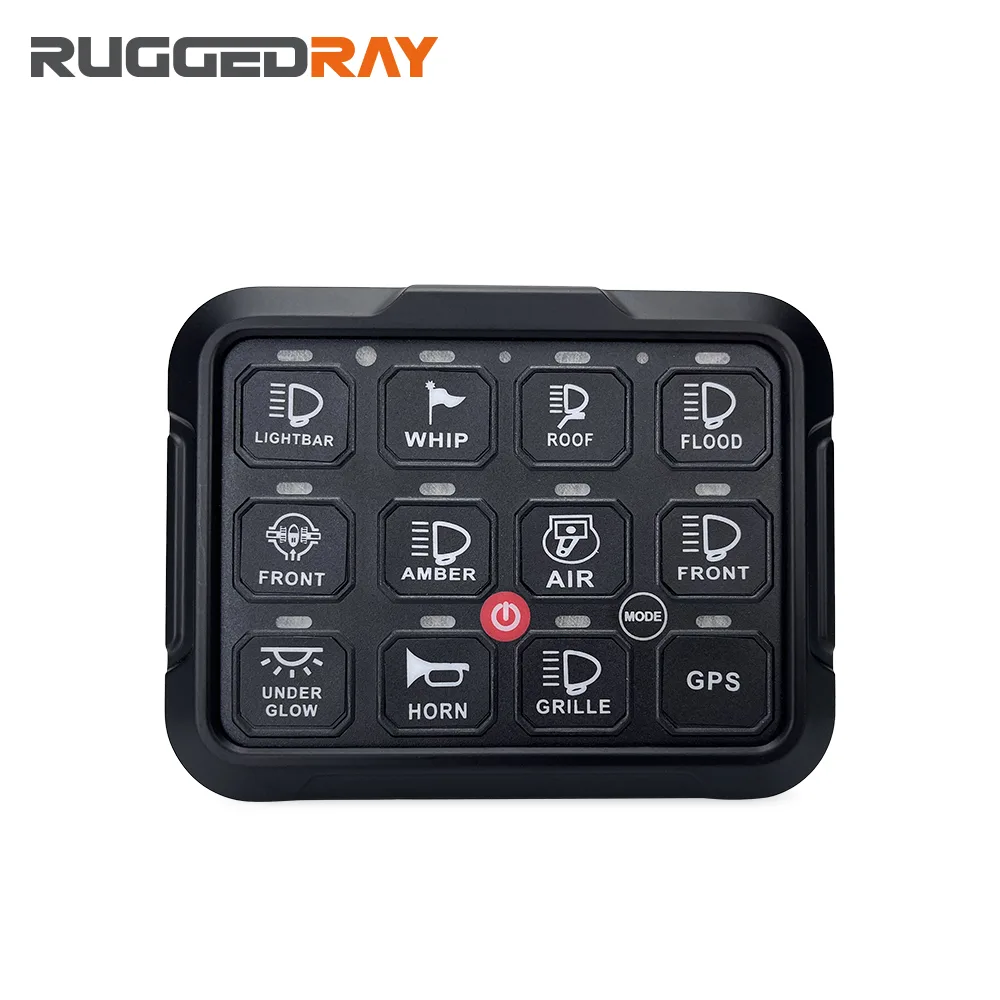

- 70 OEM decal options
- Bluetooth module optional
Where it goes

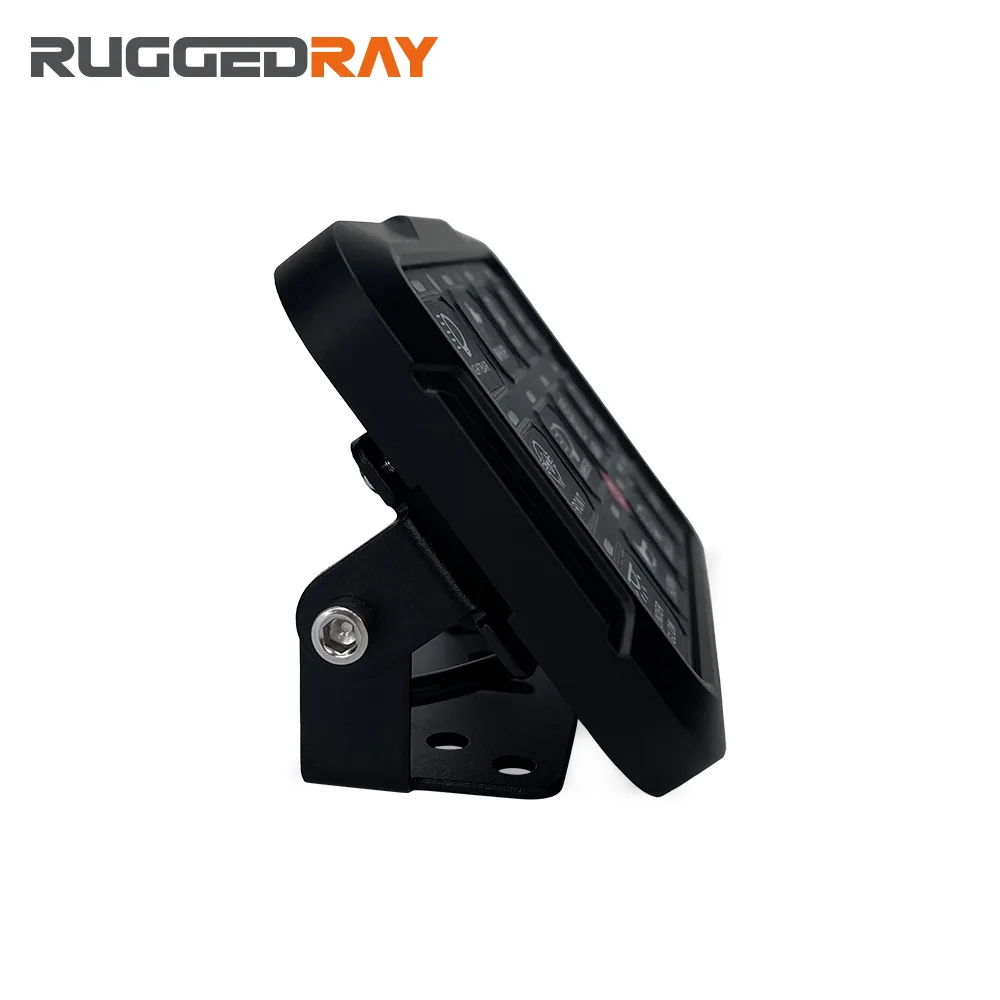

Built for overlanding rigs, 4WD touring builds, utes, trucks and recovery vehicles running 12–24V DC systems. The control box mounts in the engine bay; the switch head sits within reach on the dash or console.
Typical loads on a 12-circuit build: driving lights, a light bar, work lights, an air compressor, a dual-battery fridge, rock lights and camp lighting — each on its own protected channel.
Rated for -40°C to 105°C, so it holds up from a Scandinavian winter to an Australian summer.
Specifications
| Model | TC-SW12 |
|---|---|
| Type | Push-button (Electronic) |
| Circuits | 12 |
| Operating voltage | 12–24V DC |
| Total current | ≤100A total |
| Per-channel rating | 2×30A, 4×20A, 3×10A, 3×5A |
| Power output | 1200–2400W |
| Switching technology | Electronic |
| Control | Panel buttons + BLE (optional) |
| Backlight | RGB (MODE button) |
| Bluetooth | Optional |
| Icon options | 70 OEM decals |
| Ingress protection | IP65 |
| Operating temperature | -40°C to 105°C |
| Panel dimensions | To be confirmed — contact us for this figure |
| Net weight | 2.2 kg/set |
| Warranty | 5 years |
| Certifications | CE, FCC, RoHS 2.0, REACH |
Specifications marked to be confirmed are awaiting written confirmation from the production line. We would rather leave a field blank than publish a number we cannot stand behind — ask us and we will chase it for you.
Certification
Tested as part of the RuggedRay 12V smart switch panel family. Certificate numbers and the issuing laboratory are published so a distributor can verify them directly; full copies are supplied with dealer enquiries.
RuggedRay products are designed, manufactured and certified under Guangzhou Trutec Electronics Technology Co., Ltd.
| Mark | Scope | Certificate | Issued by | Issued |
|---|---|---|---|---|
| CE | EMC Directive 2014/30/EU | HTT2024121386E | Shenzhen HTT Technology Co., Ltd | 2024-12-31 |
| FCC | Supplier's Declaration of Conformity | HTT2024121386F | Shenzhen HTT Technology Co., Ltd | 2024-12-31 |
| RoHS 2.0 | Directive 2011/65/EU Annex II, as amended by (EU)2015/863 and (EU)2017/2102 | HTT2024121386R | Shenzhen HTT Technology Co., Ltd | 2024-12-31 |
| REACH | SVHC screening, 240 substances | Report on file | Shenzhen HTT Technology Co., Ltd | 2024-12-31 |
Questions buyers ask
- Will the TC-SW12 run on a 24V truck?
- Yes. The TC-SW12 accepts 12–24V DC, so the same part number covers 12V 4WDs and 24V trucks without a converter.
- Can I run a winch through it?
- Not directly. The highest-rated channel on the TC-SW12 is 2×30A, which suits lighting, compressors, fridges and pumps. A winch needs its own solenoid or contactor fed straight from the battery — the panel can switch that contactor.
- What happens if a circuit overloads?
- Each circuit carries its own fuse in the control box, so an overload opens that one circuit and leaves the rest running. Fuses are standard blade type — carry a couple of spares and you can swap one on the track in under a minute.
- Is it waterproof?
- The TC-SW12 is rated IP65. The control box is built for engine-bay mounting and the switch head mounts inside the cabin.
- Do you supply custom icons and packaging?
- Yes. The TC-SW12 ships with 70 oem decals as standard, and custom icon sets, logo printing and retail packaging are available for dealer and distributor programmes. Talk to us about volumes.
- What is the warranty?
- 5 years from date of shipment, covering the control box, switch head and loom against manufacturing defects.
